1. Application
MXa's overvoltage and undervoltage tripping devices are mainly used for AC 50Hz, rated voltage 230V line and CQB5a series circuit breaker devices manufactured under voltage protection.
Standard Number: GB 14048.5, IEC 6094 7-5-1.
2. Technical Data
Model | Version |
Rated thermal current (Ue) | AC 230 V 50∈ Hz |
Rated insulation voltage (Ui) | 415 V |
Operation Properties | 175 V~255 V、 |
265 V 21728 40 32002 10 V | |
165 V 21728 40 32002 10 V | |
Life | 4000 |
3. Operation and installation conditions.
3.1 Ambient temperature: from -25 ℃ to + 50 ℃
3.2 Relative humidity: ≤90% / 20 ℃, ≤50% / 40 ℃.
3.3 Altitude is less than 2000m

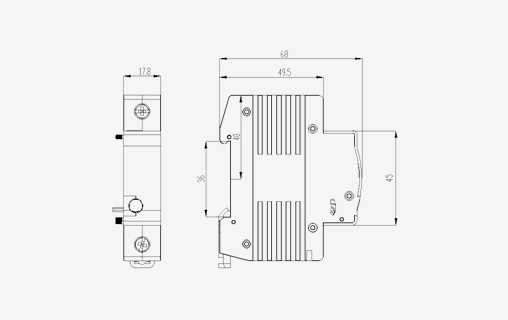

4. Overall and mounting dimensions (mm)
