AUXILIARY CONTACT ENCLOSURE
Product Details
Product Details
1. Application
Of the auxiliary contacts applied to AC 50Hz, the conventional thermal current 4A, rated voltage 230V or DC rated voltage 110V circuit and its CQB5a circuit breaker assembly, the long distance circuit breaker on-off signal indicating that it has been used. Standard number:
Complies with GB14048.5, IEC 6094 7-5-1.
2. Technical Data
Model | Version | |
AC-15 Series | Rated Voltage (V): | AC 230 V |
Rated Current (A): | 16 A | |
DC-13 Series | Rated Voltage (V): | DC 110 Volt |
Rated Current (A): | 1 A | |
Mechanical life | 10000 | |
3. Operation and installation conditions.
3.1 Ambient temperature: from -40 ℃ to 40 ℃
3.2 Relative humidity: ≤90% / 20 ℃, ≤50% / 40 ℃.
3.3 Altitude is less than 2000m

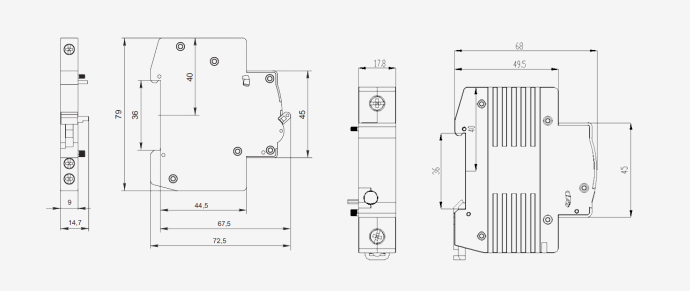

4. Overall and mounting dimensions (mm)
