Shunt Tripping Device - Enclosure
Product Details
Product Details
1. Application
MX shunt tripping device is mainly used for CQB5a series circuit breakers equipped with AC50Hz, rated voltage 230V line and long distance shunt tripping operation.
Standard Number: GB 14048.5, IEC 6094 7-5-1.
2. Technical Data
Model | Version |
The rated voltage of the control power supply is us | AC 230 V 50 Hz |
Rated insulation voltage (Ui) | 415 V |
Operation Properties | (70% ~ 110%) We make a release that works reliably to break the circuit breaker. |
Life (Operation) | 4000 |
3. Operation and installation conditions.
3.1 Ambient temperature: from -25 ℃ to + 50 ℃
3.2 Relative humidity: ≤90% / 20 ℃, ≤50% / 40 ℃.
3.3 Altitude is less than 2000m

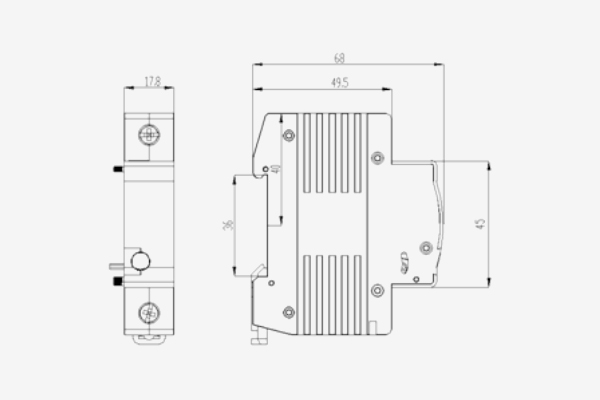

4. Overall and mounting dimensions (mm)
